Hardware Discussion

CW-TGL-NAS

Officially replied
2026-02-11 23:59:13
23 Times read
1 Comments

Hello,

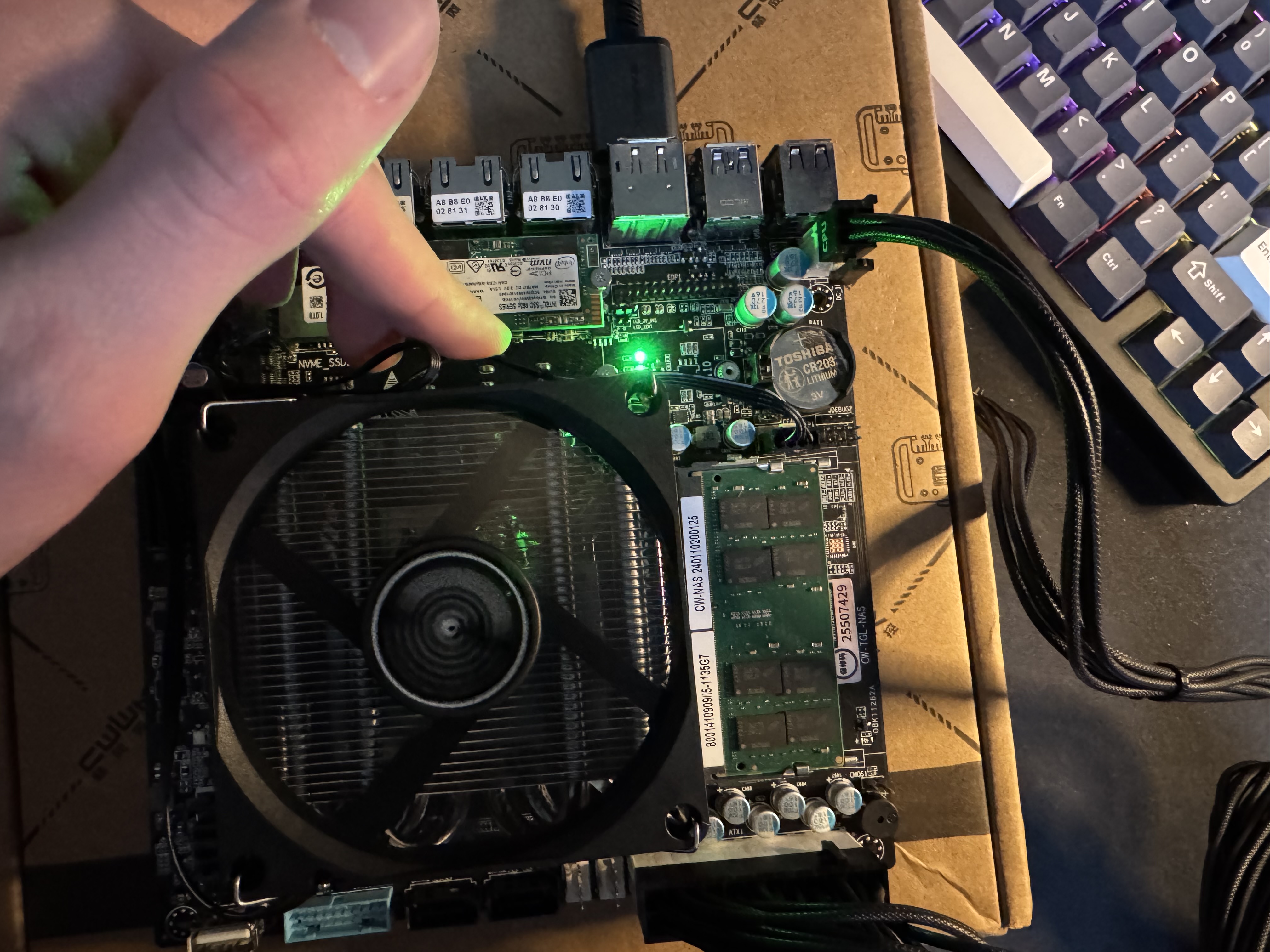

My CW-TGL-NAS keeps beeping when powered on. I have 24-pin ATX power installed, I have the 4-pin CPU power installed, RAM and SSD. I will go to boot this and it will beep continuously from power-on to me. It does also not seem to give any post.  When I remove the RAM same thing happens, when I remove the CPU power it will not beep continuously, or at all. Both Power leds are on, so thats strange. So this must be an issue with the CPU Power? I have Seasonic focus SPX-750. Please help me!



    looddAdminCommunity worker
    2026-02-25 14:40:54

    Based on the description, the CPU is not defective. The issue is most likely an incompatibility between the power supply and the motherboard’s CPU power delivery.

    The symptoms — continuous beeping, no display, and no beeping when the CPU power is disconnected — are typical of CPU power phase mismatch or power supply compatibility issues.

    We recommend testing with a different brand or model of power supply.


    Here is a simple self-check procedure for your reference. It may be helpful. Unfortunately, it is only available in Chinese, so you may need to translate it yourself. We will improve the English knowledge base as soon as possible.

    https://doc.x86pi.cn/#/docs/fs/VXCQuW3XQSosL8RRJL2ixp/442
