AMD FP7-20G 8845HS Freeze/reboot

Hello,

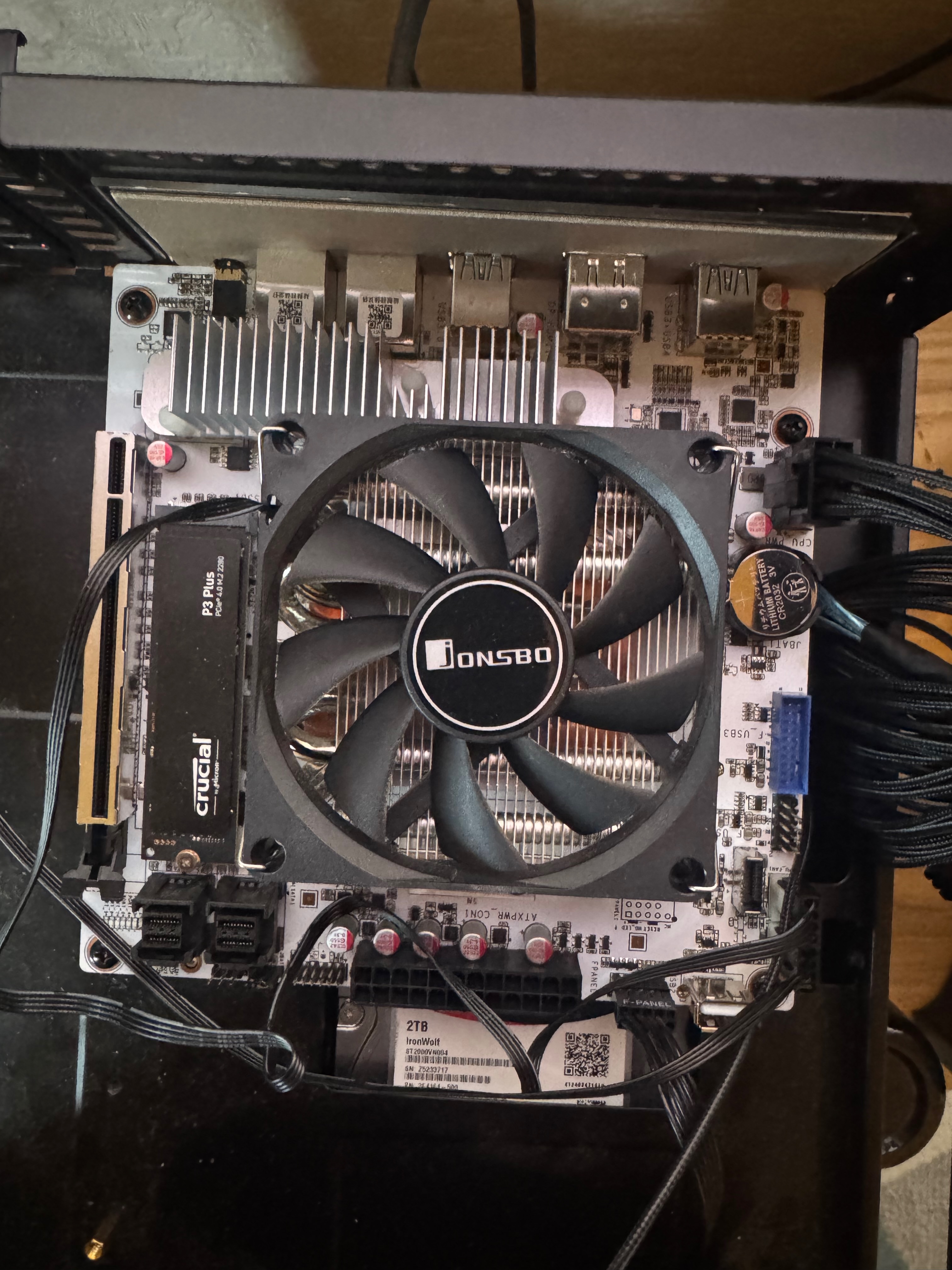

I bought the CWWK AMD 8845HS Octa-core NAS motherboard Dual 10G Ethernet ports 8 drive bays Dual ASM1164 expansion SATA3.0 / PCIE X16 (AMD FP7-20G ) and i have some trouble of reboot/freeze :

Ports list  :

• * USB 3.2 Gen 2
• * Type C
• * DP 2.1
• * HDMI 2.1
• * 2 x USB 3.2 Gen 1
• * 2 RJ45 10G
• * Jack 3.5

The other hardware i have is

• * CORSAIR SF750  (750W)
• * CORSAIR VENGEANCE SODIMM DDR5 RAM 16Go  4800MHz CL40  (CMSX16GX5M1A4800C40)
• * SSD 500Go nvme Crucial P3 plus CT500P3PSSD8
• * 4 HDD WDC WD80EFPX-68C4ZN0 8TO
• * 2 HDD ST2000VN004-2E4164 2TO

Software :

• * Kernel : Linux 6.12.57+deb12-amd64
• * Debian 12 Bookworm
• * OpenMediaVault 7.7.24-7

Since the beginning the mother board freeze/reboot without a lot of informations inside the log (Brutal reboot/freeze).

At start, with the default parameter inside the bios, the motherboard was freezing / restarting during a simple APT install in debian.

I have updated the bios with the official bios version from CWWK.

Generally speaking the motherboard freeze without explanation sometimes but also with specific operations :

• * During a backup and the use of Rsync
• * Media Service who scan the HDD (Plex, Jellyfin, Radarr or Sonarr).

The freeze is not linked to a specific SFF-8643 cable and occur on both

I have done some test :

• * MemTest --> Ok
• * Stress CPU --> Ok
• * Stress CPU + Stress IO --> not Ok
• * Smart HDD + Nvme --> Ok
• * HDD always on
• * HDD with sleep mode

I have also try some parameters inside the bios (All parameters set is in the bottom of the post) :

• * Eco mode : H Series OPNs System Config 4 (35W)
• * PCIe Loopback mode : Disabled
• * ASPM Mode and Hotplug Mode disabled
• * Change Slot Bandwidth : X4X4

Some bios settings help and reduce the number of freeze like the slot bandwidth

I have also set some parameters in debian :

• * processor.max_cstate=1
• * nomodeset
• * pcie_aspm=off

Some parameters helps me to reduce the amount of freeze to 1/2 freeze by day but the bug didn't disappear.

I hope i have put enought details, don't hesitate to ask for more.

Thanks for the support

Product name AMD FP7 NAS

Menu advanced :

	Menu Trusted Computing :
		Security device Support : Disable (Disable, Enable)
	Menu AMD CBS
		Menu CPU Common Options
			SVM Lock : Disable (Enabled,Disabled,Auto)
			SVM Enable : Enabled (Enabled,Disabled,Auto)
		Menu NBIO Common Options
			Menu GFX Configuration
				iGPU Configuration : UMA_AUTO (Auto, iGPU disabled, UMA_Specified, UMA_AUTO, UMA_GAME_OPTIMIZED, UMA_WORKSTATION_OPTIMIZED)
				UMA Version : Legacy (Legacy, Non Legacy, Auto)
				GPU Host Translation Cache : Auto (Disabled,Enabled,Auto)
				TCON Instant On logo : Auto (Disabled,Enabled,Auto)
				UMA Carveout Index Max Control : Auto (Auto, Manual)
			Audio Configuration :
				NB Azalia : Disabled (Disabled, enabled, auto)
				Audio IOs : Auto (HDA (3SDI), HDA (1SDI) + SW0 (1MDATA) etc…. LPFLL Clock Out)
			PCIe Loopback mode : Disabled (Auto, Disabled, Enabled)

		Menu FCH Common Options :
			Menu USB4 Configuration Options
				USB4 pre-CM enable : Disabled (Disabled,Enabled,Auto)
				Menu USB4 RT0
					RT0 Router Enable :Disabled (Disabled, Enabled, Auto)
				Menu USB4 RT1
					RT1 Router Enable :Disabled (Disabled, Enabled, Auto)
		Menu SMU Common options
			System Configuration : Auto (Auto, 15W,20W,28W,30W,45W,45W,54W)
			SPL Control : Auto (Auto, manual)
			PPT Control : Auto (Auto, Manual)
			STAPM Control : Auto (Auto,Manual)
			Thermal Control : Manual (Auto,Manual)
			TjMax : 93 (°C)
			TDC Control : Auto (Auto,Manual)
			EDC Control : auto (Auto,manual)
			PSI3 Control : Auto (auto, manual)
			Prochot Control  : auto(Auto,Manual)
			STT Control : Auto (auto, manual)
			Fan Control : Auto (Auto,manual)
			Menu SmartShift Control :
				SmartShift Control : Auto (Auto, Manual)
				If Manual is selected :
					Smartshift Enable (Enabled, Disabled, Auto)
					APU Only sPPT Limit : 54000
					Sustained PowerLimit : 54000
					Fast PPT Limit : 54000
					Slow PPT Limit  : 54000
			Eco Mode : H Series OPNs System Config 4 (35W) (Auto,H Series OPNs System Config 4 (35W) )
	Menu Hardware Monitor
		PC Health Status
			CPU temperature
			System 1 temperature
			System2 Temperature
			CPU Fan Speed
			System Fan Speed
			APU_VDDSOC_RUN
			APU_VDDIO_SUS
			12V_RUN
			5V_ALW
			1.8V_RUN
			Menu Smart Fan Function
				CPU Fan Mode : Automatic Mode (Automatic Mode, Manual PWM Mode)
					Fan Off Temperature Limit : 16
					Fan start Temperature Limit 35
					Fan full speed temperature limit : 85
					Fan start pwm : 105
					Fan Slope setting :  1PWM (0.125 , 0.25, 0.5, 1, 2, 4 , 8 , 15.875)
				Smart Fan 3 Mode : Automatic Mode (Automatic Mode, Manual PWM Mode)
	Menu S5 RTC Wake Settings
		Wake system From s5 : Disabled (Disabled, Fixed Time, Dynamic Time)
	Menu CPU Configuration
		Module Version : PhoenixCPU 04
		PSS Support : Enabled  (Disabled, Enabled)
		PCC Adujustment : PState 1 ( PState 0, PState 1 , PState 2)
		NX Mode : Enabled (Enabled, Disabled)
		Node 0 Informations :
	Menu PCI Subsystem Settings
		AMI PCI Driver Version : A5.01.29
		Above 4G Decoding : Enabled (Disabled, enabled)
		Re-Size BAR Support disabled (Disabled,Enabled)
		SR-I0V support : Disabled (Disabled, Enabled)
		BME DMA Mitigation : Disabled (Disabled, Enabled)
		Hot Plug Support : Disabled (Disabled,Enabled)
	Menu USB Support
		Legacy USB Support : Enabled (Enabled, Disabled, Auto)
		XHCU Hand Off : Enabled (Enabled, Disabled)
		USB Mass Storage Driver Support : Enabled (Enabled, Disabled)
		USB Transfer Timeout : 20 sec (1,5,10,20)
		Device Reset Time out : 20 sec (10,20,30,40)
		Device Power up delay : Auto (auto, manual)
	Menu Network Stack Configuration
		Network Stack : Disabled (Enabled, Disabled)

	Menu Nvme Configuration
		Self Test option : Short (Short Extended)
		Self test action : Controller only test (Controller only test ,Controller and namespace test)
	Menu Demo Board :
		OnBoard PCIE Lan PXE Rom : Enabled (Enabled,Disabled)
		Menu PCI-E Port :
			PCIE port COntrol : Enabled (Enabled, Disabled)
			DEVice 1 Fun 1 : Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#1/Func#1) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#1/Func#1)  : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 1 Fun 5 : Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#1/Func#5) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#1/Func#5)  : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 2 Fun 4 :Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#2/Func#4) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#2/Func#4) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 1 Fun 3 : Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#1/Func#3) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#1/Func#3) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 2 Fun 1 : Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#2/Func#1) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#2/Func#1) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 2 Fun 2 :Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#2/Func#2) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#2/Func#2) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 2 Fun 3 :Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#2/Func#3) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#2/Func#3) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)
			Device 1 Fun 2 :Auto (Auto, Enabled, Disabled)
				ASPM Mode (Dev#1/Func#2) : Disabled (Disabled, L0s Entry, L1 Entry, L0s And L1 entry)
				HotPlug mode  (Dev#1/Func#2) : Disabled (Disabled, Hotplug Basic, Hotplug Server, Hotplug Enhanced, Hotplug Inboard, Auto)

	Menu OEM Features Management
		POWER LOSS : Power ON (Power ON, Power Off, Last State)
		USB Power controller : S4+S5 OFF (All on, S5 off, S4+S5 off)
		Change Slot Bandwidth : X4X4 (X8,X4X4)
Menu Security
	Disable Block Sid : Disabled (Disabled, Enabled)
	Menu Secure Boot :
		Secure Boot : Disabled (Disabled,Enabled)
		Secure Boot Mode : Custom (Custom, Standard)
		Restore Factory Keys
		Menu Expert Key Management
			Factory Key Provision : Disabled (Disabled, Enabled)
			Restore Factory Keys
			Enroll efi image
			Export Secure Boot Variable
			Secure Boot Variable :
				Platform key (pk) : No keys
				Key Exchange Keys : No keys
				Authorized Signatures : No keys
				Forbidden Signature : 217 keys Modified
				Authorized Timestamps : No keys
				OsRecovery Signatures : No keys

Menu Boot :
	Setup Prompt Timeout : 3
	Bootup NumLock State : On (on, off)
	quiet boot : disabled (disabled, enabled)
	Fast Boot : Disabled
