BIOS fo CW-APN100-4L

Officially replied

2025-12-30 12:14:41

1 Comments

Last modified time：2025-12-30 12:16:16

Hello

I have the device below (n100 processor variant with 2 SFP+ ports). After updating the BIOS with Ventoy to "CW-AL-(4L+SFP_8L)-(多网口万兆N100-N200-I3-N305)2023.08.31.iso" from this folder "https://drive.x86pi.cn/BIOS/1.miniPC-BIOS/Alder_Lake-N(N50_N95_N97_N100_N200_i3-N305)/2.第12代AlderLake-N-4L%2BSFP_8L-(多网口万兆N100-N200-I3-N305)", I get no display output. The device seems to boot just fine; it makes a single beep as it were posting, but I don't get any output from the HDMI or the DisplayPort. I have already reset the BIOS multiple times and tried reseating the RAM, but nothing seems to work. Can you please help me figure out how to make my device work again?

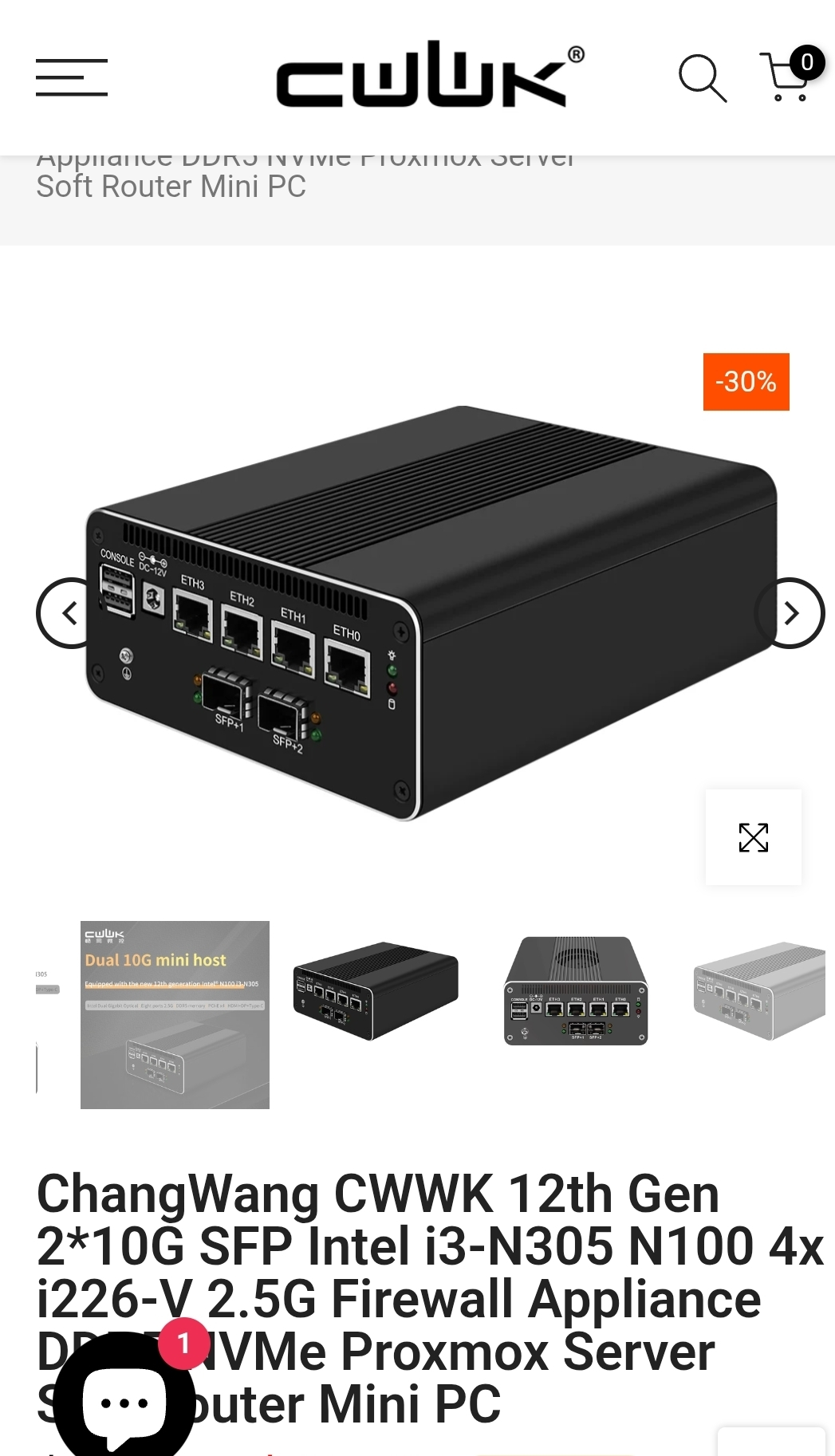

Reference Device:

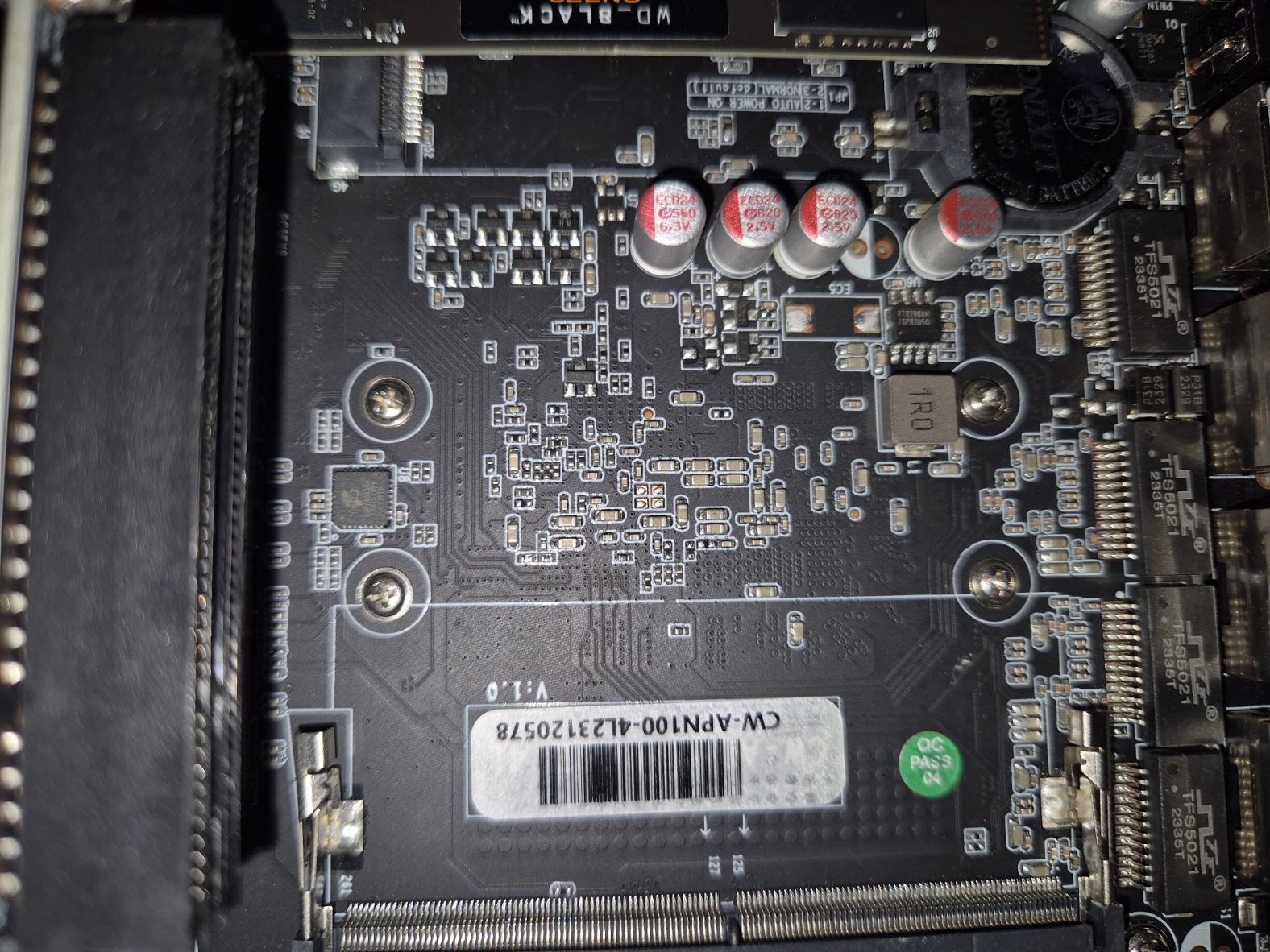

My Device ID:

looddAdminCommunity worker

2025-12-31 10:18:32

Based on the device model shown in your provided image and the BIOS version you're using, it appears to be correct. If the system truly fails to boot, we recommend following the troubleshooting procedure outlined in our knowledge base at: https://doc.x86pi.cn/#/docs/fs/VXCQuW3XQSosL8RRJL2ixp/420

If the issue cannot be resolved, you can try using a BIOS programmer to reflash the BIOS for recovery. In most cases, such problems are caused by memory or power supply issues.
