Hardware Discussion

CW-NAS-AMD-FP7-20G

Officially replied
2025-12-28 23:55:17
87 Times read
3 Comments

Hello,

I lately assemble my new NAS with CW-NAS-AMD-FP7-20G board which was working kind of good at the beginning.

Like 15 days later I lost both ASMedia 1164 sata controller. No way to get them working again, not detected in any OS.

I finally did a board inspection, and it seems that I accidentally ripped the boad somewhere and I have missing components. It is really not too dramatic, it is simple components that I could resolder, also everything else on the board is working perfectly.

I attach a photo with circles around the missing components.

I hope someone could help me to identify them, with some references, that I can buy and repair the board. I have good soldering knowledge, if too difficult I can find a local shop to do it.

Please let me know the components !

Thanks all !


    looddAdminCommunity worker
    2025-12-31 09:42:57

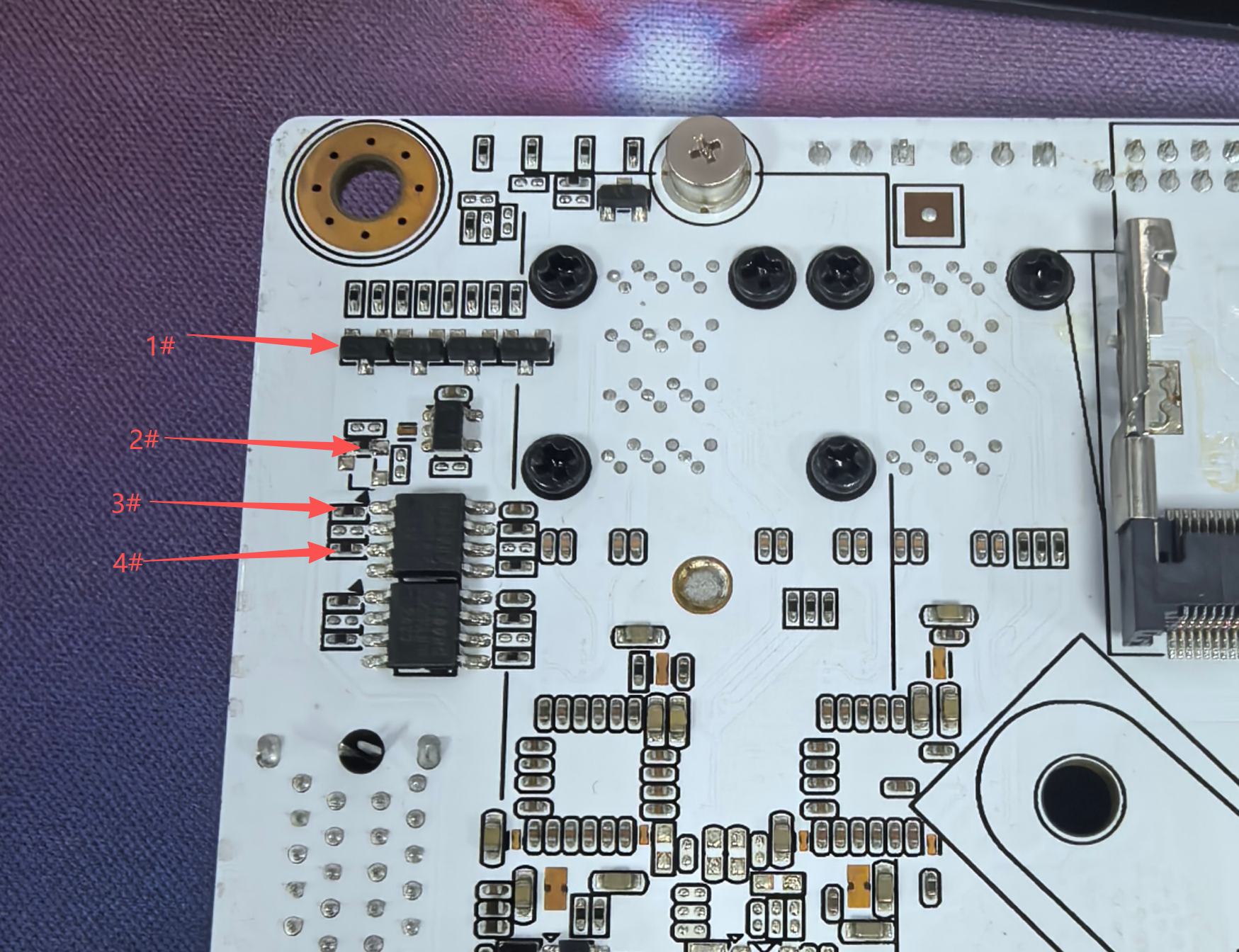

    1.SMD Schottky Diode LBAT54ALT1G 30V/0.2A VF=1V SOT-23 LRC

    2.RES 0402 0Ω 5%

    3.RES 0402 200KΩ 5%

    4.RES 0402 4.7KΩ 5%


    Please try to find the same component or one with identical specifications. Otherwise, the functionality may be affected. Hope this helps

    gartoxAuthor
    2026-01-01 01:05:39

    Hello,

    That fits perfectly my need, thank you for replying.

    Are you sure about the 2. => 0Ω 5% ? no typo ?

    Thanks a lot.

    gartoxAuthor
    2026-01-19 01:30:49

    Hello,

    Big thanks for you transparent support !

    That was very helpfull, everything is repaired and working !

    Best regards
