Hi,

I just build my new NAS server with this motherboard and have some questions.

1. Where do I see the ASM1064 (SFF8643 SATA3.0 X4 #3) in the BIOS, I can not see the HDD/SDD connected to this port in the BIOS! Why?

2. The BIOS do not seem to indientify my NVME drive? Is there something I need to do to enable the NVME ports in the BIOS?

3. Could you explain what the jumper JAT/JAX does and how it should be configured?

4. Could you explain what the jumper ME_RCVR does and how it should be configured?

5. I am using Kingston ECC memory KSM56E46BD8KM-32HA, one module. It is autmatically configured to 4800MHz instead of 5600 MHz! Why is that, and can I adjust it some how?

Thanks in advance!

    email-QB8GiEYc0JZzCntY6BxAuthor
    2025-10-10 00:23:52

    Question #1 and #2 is resolved. Question #5 is sort of ansered in topic https://bbs.x86pi.com/thread?topicId=18385 .

    Questions #3 and #4 I have still not found an answer on so please have a look at these questions!

    Thanks!

    looddAdminCommunity worker
    2025-10-23 22:03:47

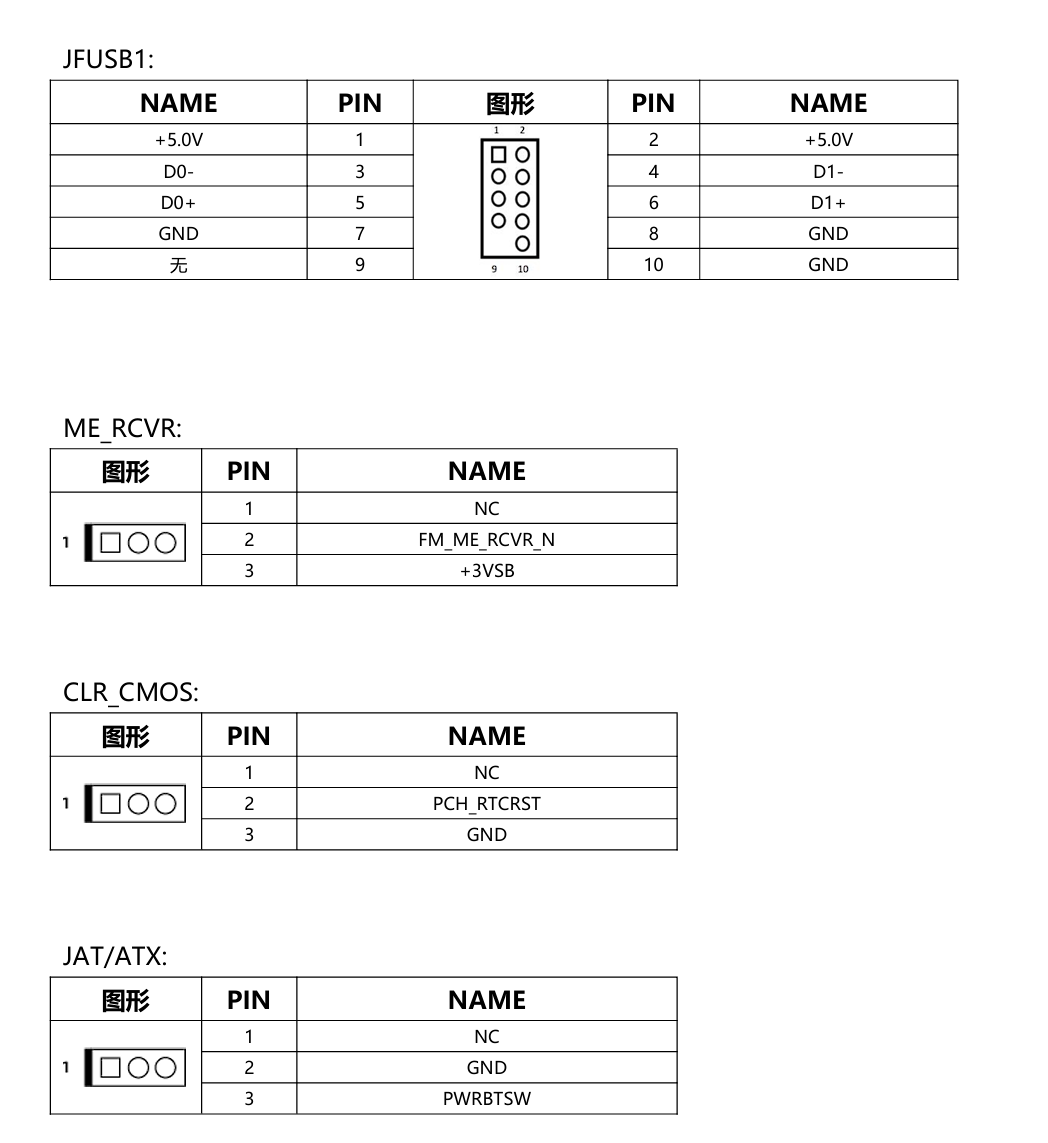

    Here are their definitions for your reference. If not necessary, you can leave them at default settings and do not need to make any changes. The JAT header is used for a hardware-level function that enables the system to automatically power on after AC is connected. The ME_RCVR is used for a hardware-level ME lock, preventing the BIOS from being maliciously modified.
