MW-JSL2.5G-4L

How can I assist you? I'd also like to try coreboot, but due to my busy work schedule, I don't have enough time to research it thoroughly. Currently, I know that the COM/console can be used as an output device. Please leave a message about what you need.

Since we did not previously publish the resource layout diagram for the earlier motherboard, creating one would require someone to generate it from scratch, which would increase the workload for the relevant personnel. Therefore, I'd like to first confirm whether such data would be useful for you. Also, please note that we can only provide a relatively accurate representation of the resource distribution, not absolutely precise data. We appreciate your understanding.

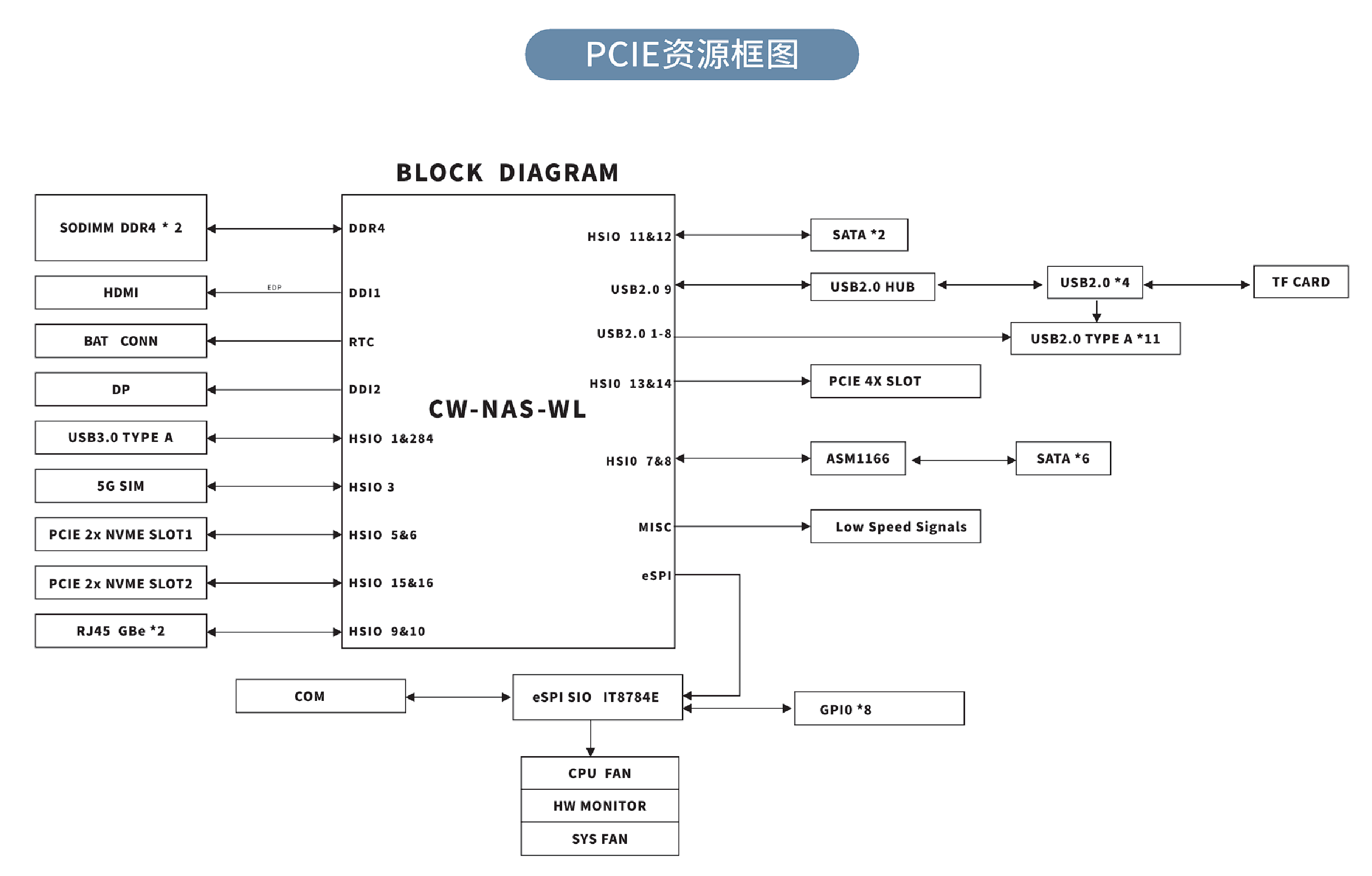

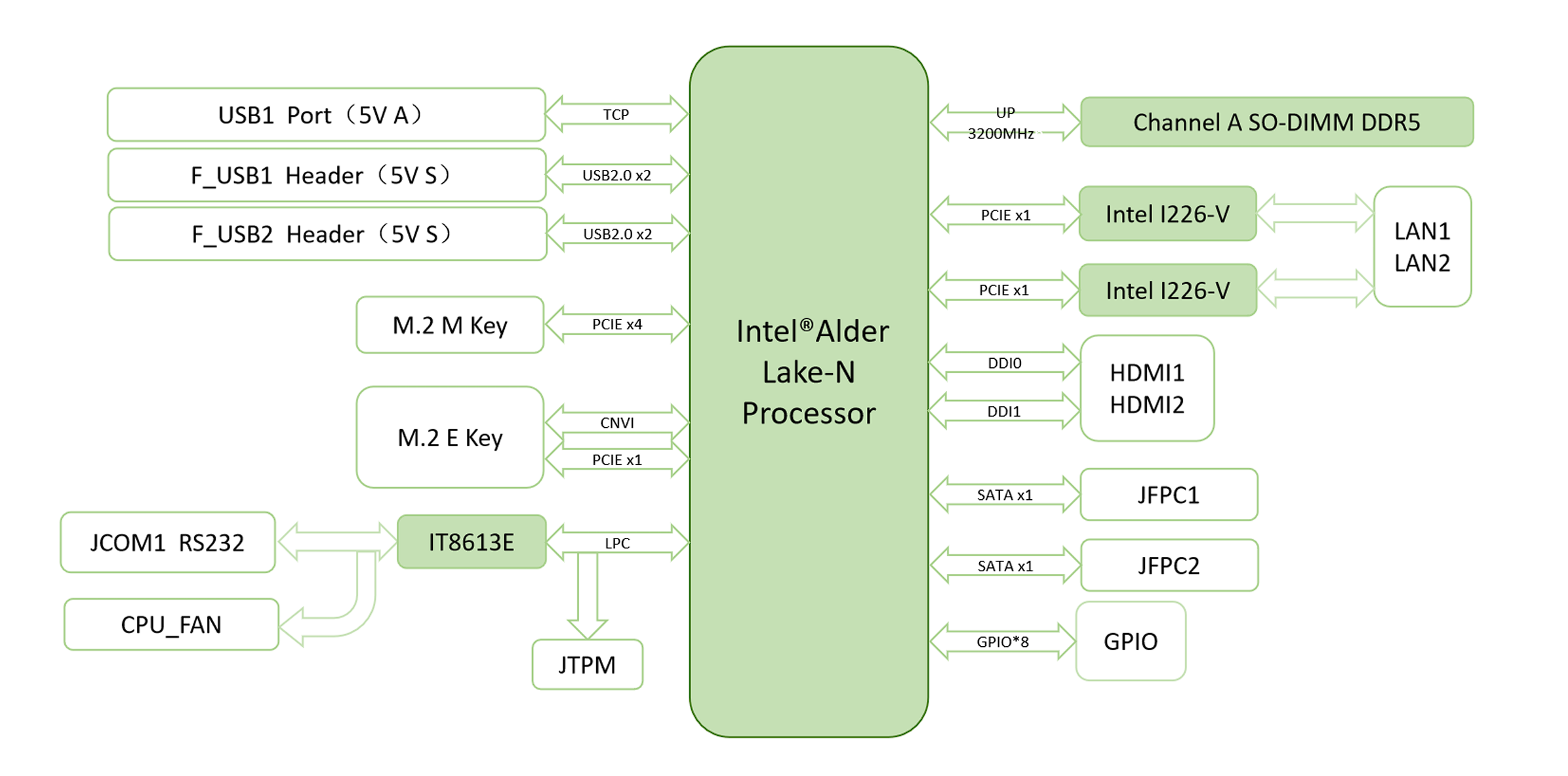

From the resource distribution map, you can see some information of limited value. It might be helpful. Since the CPU is integrated into the SoC, its signals come directly from the CPU.
