BIOS_cw-adln-nas-v10_problem_update

2025-05-03 17:18:20

4 Comments

Last modified time：2025-05-03 17:19:10

I mistakenly loaded the bios of this card taking it from here:

https://drive.x86pi.com/BIOS/Intel/2.NAS-Mainboard-BIOS/Ader%20Lake-N(N95%20N97%20N100%20N200%20N300%20i3-N305)/CW-NAS-ADLN-KV10

Now I don't know how to go back because the motherboard starts but the problem is that I don't have the old bios. If I go here to get it:

https://pan.changwang.com/

It gives me this error:

failed get objs: failed to list objs: AccountProblem: There is a problem with your account that prevents the operation from completing successfully. Please use Contact Us status code: 403, request id: 3rgAAABVMGic-TsY, host id:

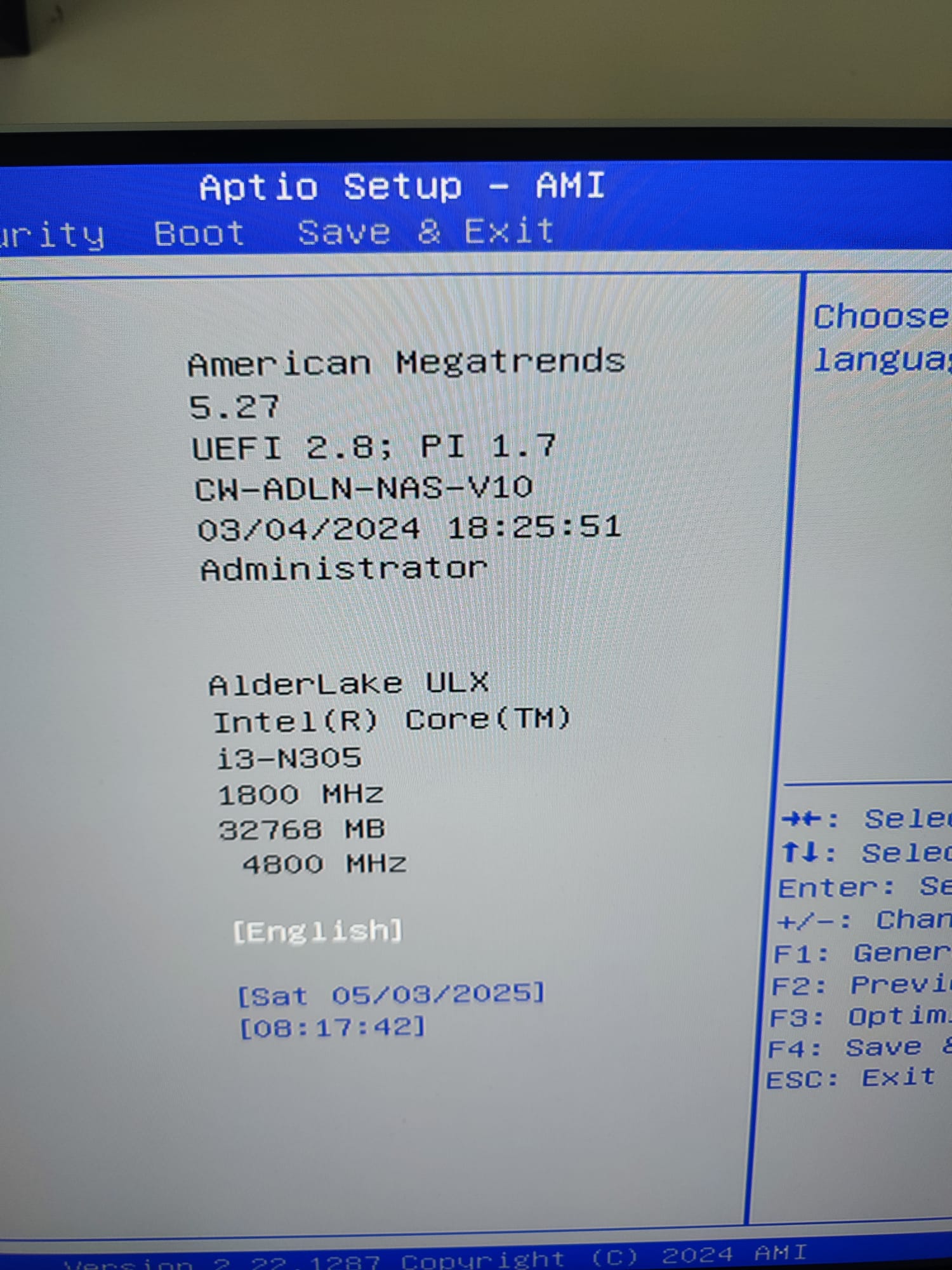

My motherboard had the following version. It just sometimes acted up when it had to be booted from scratch. That's why I was updating the bios.

looddAdminCommunity worker

2025-05-03 18:49:25

Very sorry for the inconvenience caused to you. Due to our current holiday period, there may be some issues with our server, but it won't last long. Our server administrator will restore it as soon as they start working. Please try accessing again in two or three days.

mobile-I9E0FNHDJAmna0odmOTAuthor

2025-05-03 20:55:19

Now it is accessible. I loaded this BIOS but it keeps rebooting without booting anything. I use thanks to NVME and 4 SATA HDDs. Where am I going wrong?

This is the link to the bios I installed:

https://pan.changwang.com/BIOS%E6%9B%B4%E6%96%B0/3.NAS%E5%AD%98%E5%82%A8%E7%B1%BB%E4%BA%A7%E5%93%81%E7%B3%BB%E5%88%97BIOS/2.%E7%AC%AC12%E4%BB%A3AlderLake-N%E5%9B%9B%E7%BD%91N100-N305-NAS-BIOS/AlderLake-N%E5%9B%9B%E7%BD%91NAS_N100-I3-N305_2024-11-12%E6%9B%B4%E6%96%B0

looddAdminCommunity worker
2025-05-04 10:18:49
Hello,
It's possible that the boot order was reset after the BIOS update. Please access the BIOS setup and check the first boot device in the boot settings. Press Enter to select the hard drive where your system is installed.
If your hard drive includes a UEFI partition, you should see boot options such as Windows, VMware, or Debian. Select the appropriate option, save your changes, and restart your computer.
If you are unsure which option to choose, continuously press the F7 key during startup to bring up the quick boot menu. This will allow you to manually select the boot device.
Should you need further assistance, feel free to contact us. We're here to help!
Best regards,
mobile-I9E0FNHDJAmna0odmOTAuthor
2025-05-04 16:30:38
I ran this bios and now the motherboard keeps rebooting. It beeps and then reboots after a few seconds. It seems like the BIOS is in a loop. I tried removing the battery but nothing. Is there a way to do a sort of AMI BIOS reset. I remember there was a procedure in case the BIOS didn't work with keys or load the bios into the USB with a particular name to do the recovery.

mobile-I9E0FNHDJAmna0odmOTAuthor

2025-05-05 16:33:46

Isn't there a procedure with the bios for the possible recovery of the type CTRl+HOME and insert the name of the bios of the type AMIBOOT.ROM?

looddAdminCommunity worker
2025-05-07 09:12:03
The situation you described is applicable if the motherboard has a backup BIOS chip. If you are unable to start up and only hear an alarm sound, you will need to use a BIOS burner or BIOS programmer (clip) to reflash the BIOS. Based on the details you provided earlier, I can see that your BIOS is already from 2025. Did you update the BIOS based on this?
mobile-I9E0FNHDJAmna0odmOTAuthor
2025-05-14 15:50:19
Yes I updated but now it doesn't work anymore. I'm trying to flash the bios directly on the chip. Do you think I can do it with a USB Flash BIOS without removing it from the motherboard?

mobile-I9E0FNHDJAmna0odmOTAuthor

2025-05-14 15:53:40

Do you think I can flash the BIOS directly onto the mainboard with this product?

https://www.amazon.it/KeeYees-SOIC8-EEPROM-CH341A-Programmatore/dp/B07SNTL5V6

looddAdminCommunity worker
2025-05-21 21:16:32
Yes, you can directly flash the bin file into the chip using it. Please note that you should erase the content before writing.
mobile-I9E0FNHDJAmna0odmOTAuthor
2025-06-19 20:58:08
I had the opportunity to flash the bios "25q128jvsq" with the "AS Programmer" program and I succeeded, however I noticed, as before, that sometimes it does not boot correctly with proxmox. The whole point is that if it does not have a keyboard and monitor, it creates this problem. Is there a way to bypass these things? Fastboot is disabled.
looddAdminCommunity worker
2025-06-20 17:52:44
Currently, you are able to enter the BIOS, but you cannot boot into the operating system — is that correct?
Have you installed the operating system correctly?
